| Class | Light |
| Max. passengers | 8 |
| Year of production |
1997
PRO
|
| Tail number | N677KE |
| Homebase | KSTJ (STJ), Rosecrans Meml |
| Cabin height | 1.46 m |
| Cabin width | 1.49 m |
| Cabin length | 4.75 m |
| Luggage volume | 1.50 m³ |
✓ Lavatory
Engine
JT15D-5Engine 1 Serial Number - PCE-JA0480
Engine 1 Total Hours - 3,870
Engine 1 Total Cycles - 2,675
Engine 2 Serial Number - PCE-JA0481
Engine 2 Total Hours - 3,924
Engine 2 Total Cycles - 2,697
Avionics
Proline 21 with Modernization Package; Installed by Constant AviationEFIS: 4 Display PL-21 LCD Display System-2 PFD’s and 2 MFD’s with Integrated Engine Indication (All same p/ n’s)
FDR: None
CVR: L3 A100S
FMS: Collins FMS-6100
CMU: Collins CMU-4000
VHF: Collins VHF-4000
XPNDR: Dual Collins TDR-94D
DME: Dual Collins DME-442
ADC: Collins ADC-850D
GPS: GPS-4000S with RNAV WAAS/ LPV Approach Capability
TCAS: Collins TTR-920 TCAS II 7.1
IFIS: IFIS-5000
AHRS: Digital AHS-3000A
CDU: Dual CDU-6200 LCD
Additional Equipment
SVS: Collins SVC-3000 Synthetic Vision
TAWS A-Mode 5
Collins XM Weather
IFIS File Server- Charts & Enhanced Maps
DBU: DBU-5010E USB based Data Loaders- Ascend Compatible
WAAS/LPV
Single Integrated 3-in-1 LCD Standby Instrument (SAM)
Gogo AVANCE L3 Wi-Fi; Aircell Axess Cabin II Iridium Phone
Collins Venue In-Flight Entertainment; EMTEQ LED Cabin Lighting System

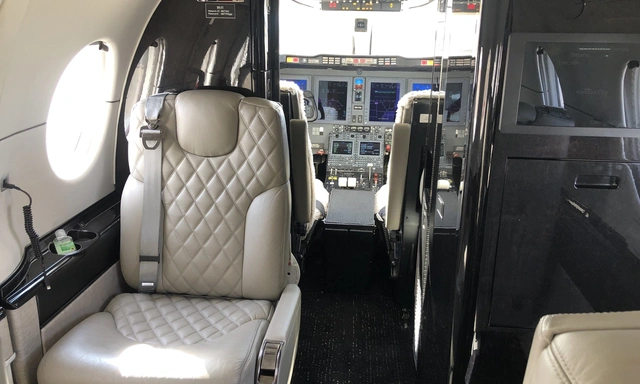

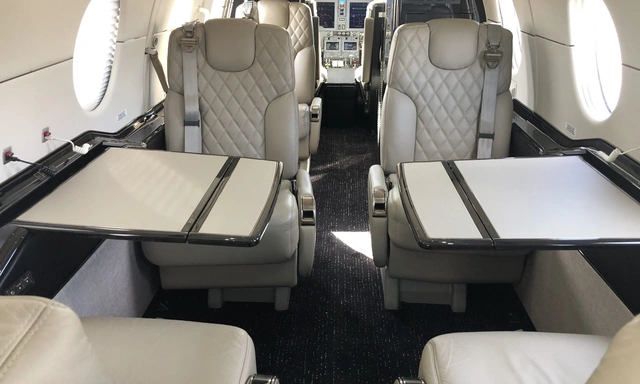

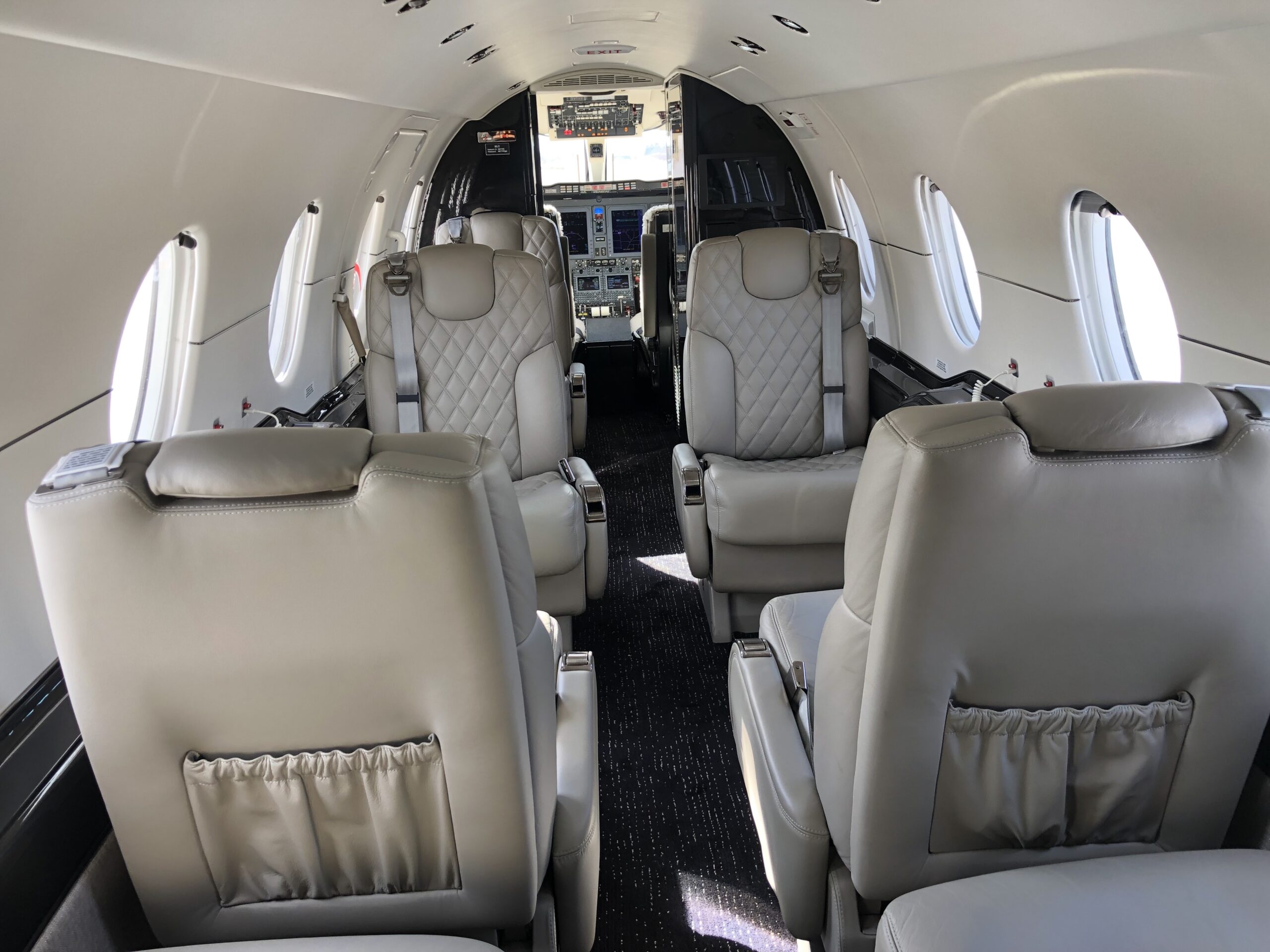

Interior
Number of Passengers - Eight (8)Refreshment Center Location - Forward
Cabin Configuration - Single Aft Facing Seat followed by Four Place Club followed by Two Forward Facing Seats
Lavatory Location - Aft-Belted
Refreshment Center Equipment - Coffee/Hot Water; Ice Drawer; Storage Drawers
Other Notable Features - New Interior Oct 2019- Diamond Stitched Leather Seating; Dark Wood Veneer; New Carpet and Plating; LED Lighting; Cool-View Cockpit Windshields
Exterior
Base Paint - Matterhorn WhiteStripe Colors - Super Jet Black and Medium Silver
New Paint - July 2019
